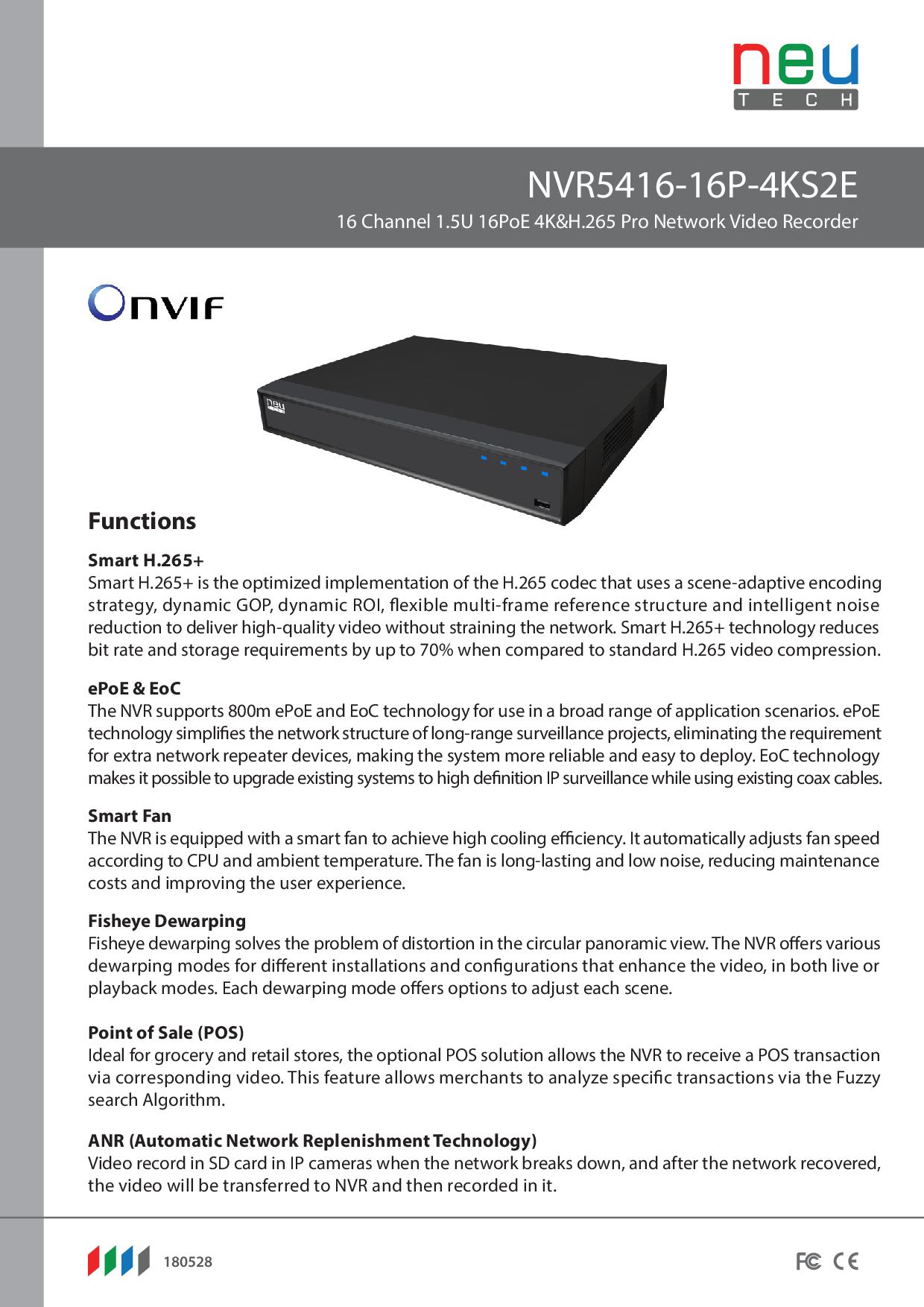

เครื่องบันทึกภาพ (16 POE) NVR5416-16P-4KS2E




เครื่องบันทึกภาพ (16 POE) NVR5416-16P-4KS2E
เครื่องบันทึกภาพความละเอียดสูงระบบไอพี  16 Channel NVR5416 16 PoE

รายละเอียด

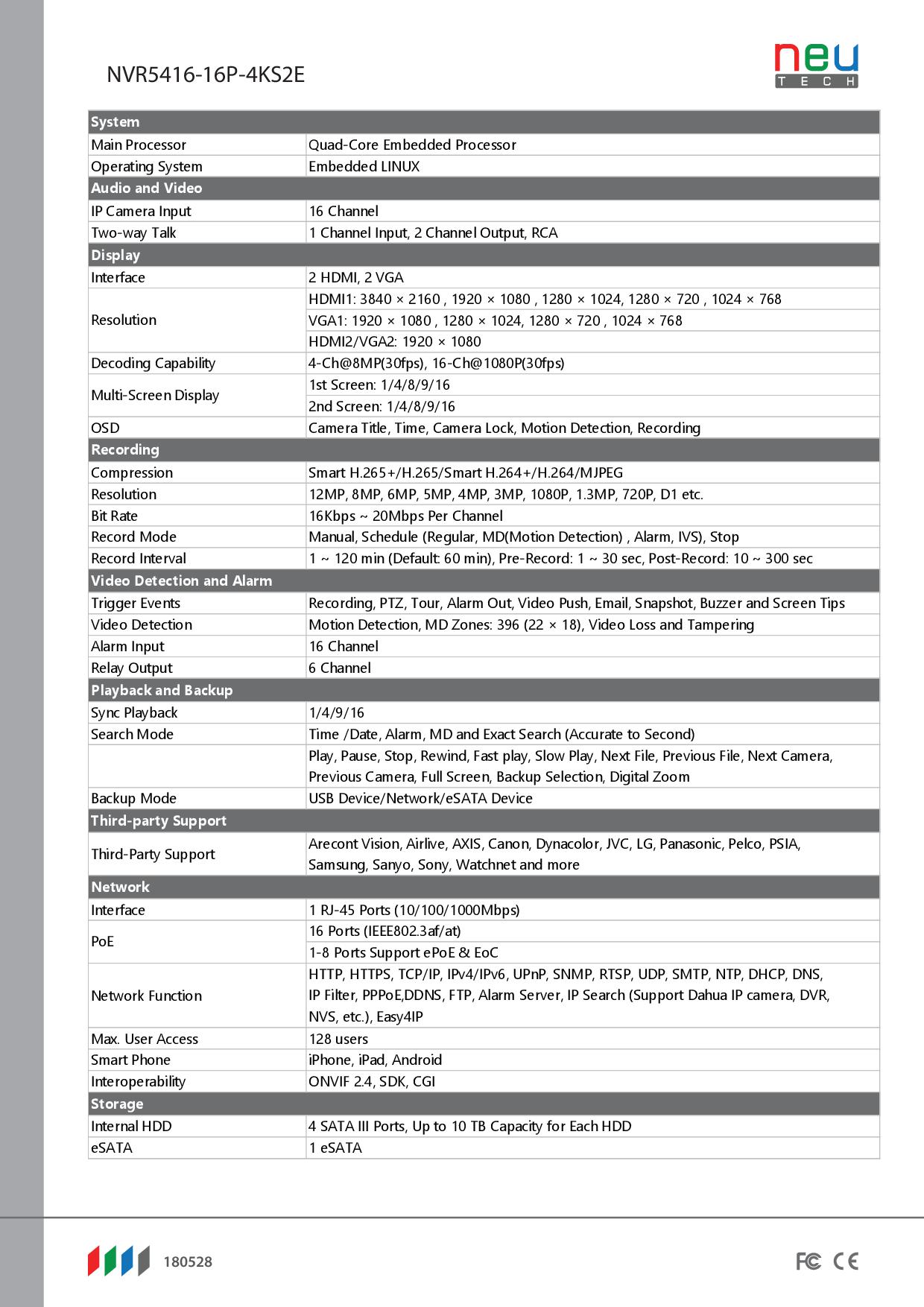

System
Main Processor Quad-Core Embedded Processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 16 Channel
Two-way Talk 1 Channel Input, 2 Channel Output, RCA
Display
Interface 2 HDMI, 2 VGA
Resolution HDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
HDMI2/VGA2: 1920 × 1080
Decoding Capability 4-Ch@8MP(30fps), 16-Ch@1080P(30fps)
Multi-Screen Display 1st Screen: 1/4/8/9/16
2nd Screen: 1/4/8/9/16
OSD Camera Title, Time, Camera Lock, Motion Detection, Recording
Recording
Compression Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval 1 ~ 120 min (Default: 60 min), Pre-Record: 1 ~ 30 sec, Post-Record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm Input 16 Channel
Relay Output 6 Channel
Playback and Backup
Sync Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (Accurate to Second)
  Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera,
Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/eSATA Device
Third-party Support
Third-Party Support Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA,
Samsung, Sanyo, Sony, Watchnet and more
Network
Interface 1 RJ-45 Ports (10/100/1000Mbps)
PoE 16 Ports (IEEE802.3af/at)
1-8 Ports Support ePoE & EoC
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS,
IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR,
NVS, etc.), Easy4IP
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 4 SATA III Ports, Up to 10 TB Capacity for Each HDD
eSATA 1 eSATA
Auxiliary Interface
USB 3 USB Ports (2 Rear USB 3.0 , 1 Front USB 2.0 )
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Electrical
Power Supply Single, AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption NVR: <17.5W (Without HDD)
PoE: Max 25.5W for Single Port
150W Total Rated Power, 80% Control for Protection, Smart Fan, Automatically Adjust Running Speed
Fan Smart Fan, Automatically
adjust running speed
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions 1.5U, 440mm x 411.2mm x 76mm (17.3″ x 16.2″ x 3.0″)
Net Weight 4.65kg (10.3 lb) (Without HDD)
Gross Weight 7kg (15.4 lb) (Without HDD)
Installation Rack-Mounted
